• Solid exterior paint
• Chrome front bumper
• Painted rear step bumper w/step pad
• Wheel opening flares
• Argent painted grille
• Single rectangular halogen headlamps
• Daytime running lamps
• Cargo area lamp
• Dual black foldaway mirrors
• Solar-Ray tinted glass (all windows)
• Swing-out rear quarter windows
• Intermittent windshield wiper system
• Removable tailgate
• Insulation under dash & floor covering

• 3-passenger reclining split bench seat w/folding backrests, easy entry
• 3-passenger folding rear bench seat w/matching trim
• Scotchgard Fabric Protector on all cloth & carpet surfaces
• Color-keyed molded vinyl floor covering
• Simulated leather steering wheel
• Passlock theft deterrent security system
• Lights-on warning buzzer
• Heater/defogger w/side window defoggers
• Rear passenger heating ducts
• ETR AM/FM stereo-inc: seek-scan, digital clock, 4 speakers
• Glove box w/latched door
• Passenger side instrument panel storage bin
• Dual cupholders on instrument panel
• Dual dash mounted power outlets
• Cigarette lighter
• Molded plastic door trim panels w/dual padded armrests
• Color-keyed cloth headliner
• Dual color-keyed padded cloth sunshades w/LH storage strap, RH vanity mirror
• Passenger assist handle
• Lighting-inc: dome, reading, ashtray, glove-box, illuminated entry feature, underhood
• Dual coat hooks

• Four-wheel anti-lock brake system
• Manual lap/shoulder safety belts, front/rear outboard seat positions
• Front outboard shoulder belt height adjusters
• Manual lap safety belts, center seat positions
• Energy-absorbing steering column/instrument panel
• Head restraints, front seat
• Daytime running lamps
• Side door guard beams
• Single note horn

5.7L (350) SFI V8 (VORTEC) ENGINE ($0)

• (STD)

• MARKETING OPTION PKG 2 -inc: SL decor
• air cond
• ETR AM/FM stereo w/cassette
• tilt wheel
• speed control *GROSS* G80
• L29
• MT1

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 100
• Maximum Alternator Watts: 1200
• Cooling System
• Total Cooling System Capacity (qts): 17.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4250
• Gross Axle Wt Rating - Rear (lbs): 6000
• Curb Weight - Front (lbs): 3260
• Curb Weight - Rear (lbs): 2247
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 12,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Indep Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4250
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent GM
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4250
• Axle Capacity - Rear (lbs): 6000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.18
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.50 x 1.26
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 13.0 x 2.5
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 678
• Revolutions/Mile @ 45 mph - Rear: 678
• Revolutions/Mile @ 45 mph - Spare: 678
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 16.4
• Steering Ratio (:1), At Lock: 16.3
• Turning Diameter - Curb to Curb (ft): 51.9
• Turning Diameter - Wall to Wall (ft): 55.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Inboard LH Frame
• Exterior Dimensions
• Wheelbase (in): 155.5
• Length, Overall w/o rear bumper (in): 237.4
• Width, Max w/o mirrors (in): 76.8
• Height, Overall (in): 74.0
• Overhang, Front (in): 35.4
• Overhang, Rear w/o bumper (in): 45.7
• Front Bumper to Back of Cab (in): 135.0
• Cab to Axle (in): 55.9
• Ground to Top of Load Floor (in): 34.9
• Frame Width, Rear (in): 36.7
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 60.2
• Cargo Box Width @ Floor (in): 64.4
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 19.2
• Tailgate Width (in): 62.0
• Cargo Volume (ft³): 69.1
• Ext'd Cab Cargo Volume (ft³): 40.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.0
• Front Leg Room (in): 41.5
• Front Shoulder Room (in): 65.0
• Front Hip Room (in): 60.1
• Second Head Room (in): 38.0
• Second Leg Room (in): 28.7
• Second Shoulder Room (in): 67.6
• Second Hip Room (in): 66.1
• Summary

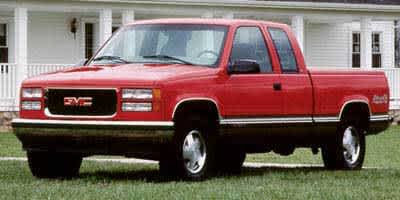

• Vehicle Name: GMC Sierra 2500
• Body Style: HD Ext Cab 8' Wideside
• Body Code: E63
